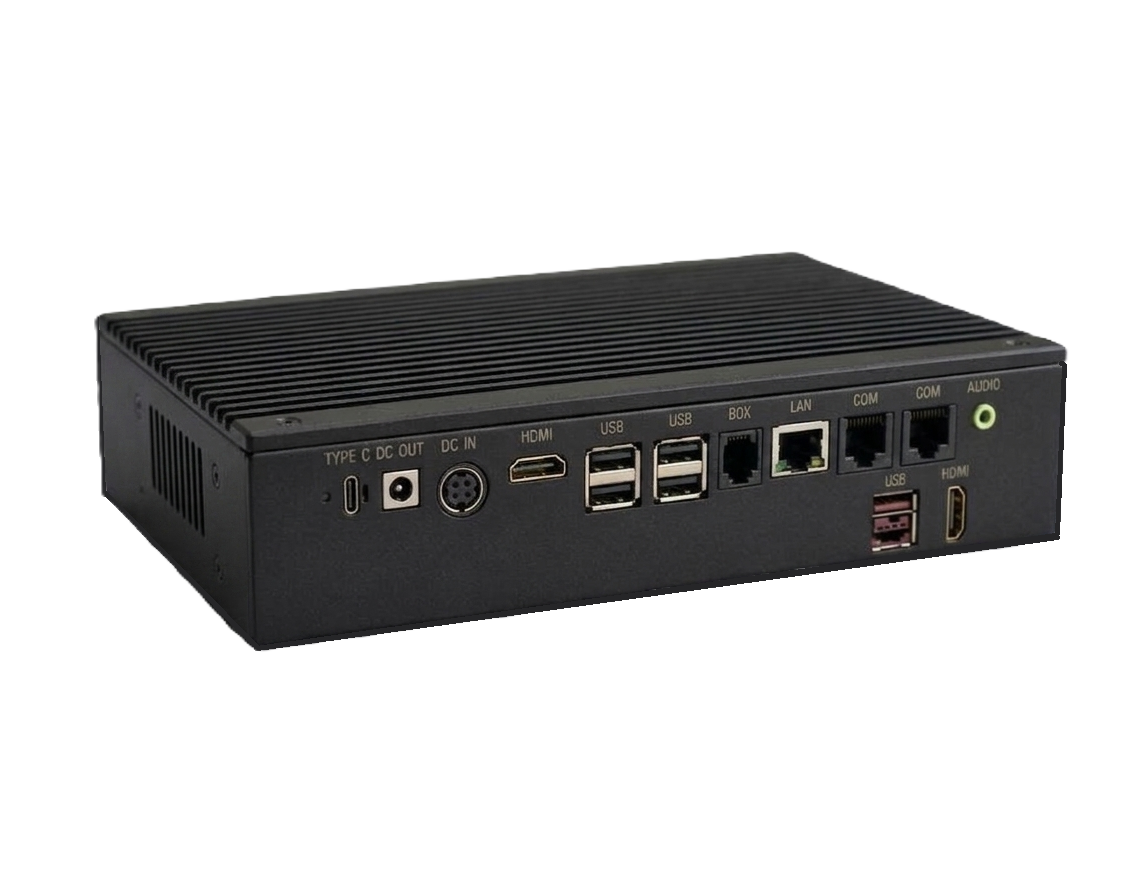

SOL

Industrial BOX PC

Configuration

  • Intel 12th Gen N95 Fanless CPU, 8Gb Ram, 128Gb M.2 SSD, Dual Band Wi-Fi, Bluetooth 5.2, 24V Power Adapter, 2*USB 2.0, 2*USB 3.0, 1* USB 24v, 2* RS232, 1x Giga LAN,1 x HDMI, 1 x RJ11 Cash Box, 1* Type C, 1*HDMI, 1 x Audio ,1x DC-in, 1x DC-out
  • Intel 12th Gen i3-1215U Fanless CPU, 8Gb Ram, 128Gb M.2 SSD, Dual Band Wi-Fi, Bluetooth 5.2, 24V Power Adapter, 2*USB 2.0, 2*USB 3.0, 1* USB 24v, 2* RS232, 1x Giga LAN, 1 x HDMI, 1 x RJ11 Cash Box, 1* Type C, 1*HDMI, 1 x Audio ,1x DC-in, 1x DC-out
  • Intel 12th Gen I5-1235U Fanless CPU, 8Gb Ram, 128Gb M.2 SSD, Dual Band Wi-Fi, Bluetooth 5.2, 24V Power Adapter, 2*USB 2.0, 2*USB 3.0, 1* USB 24v, 2* RS232, 1x Giga LAN, 1 x HDMI, 1 x RJ11 Cash Box, 1* Type C, 1*HDMI, 1 x Audio ,1x DC-in, 1x DC-out

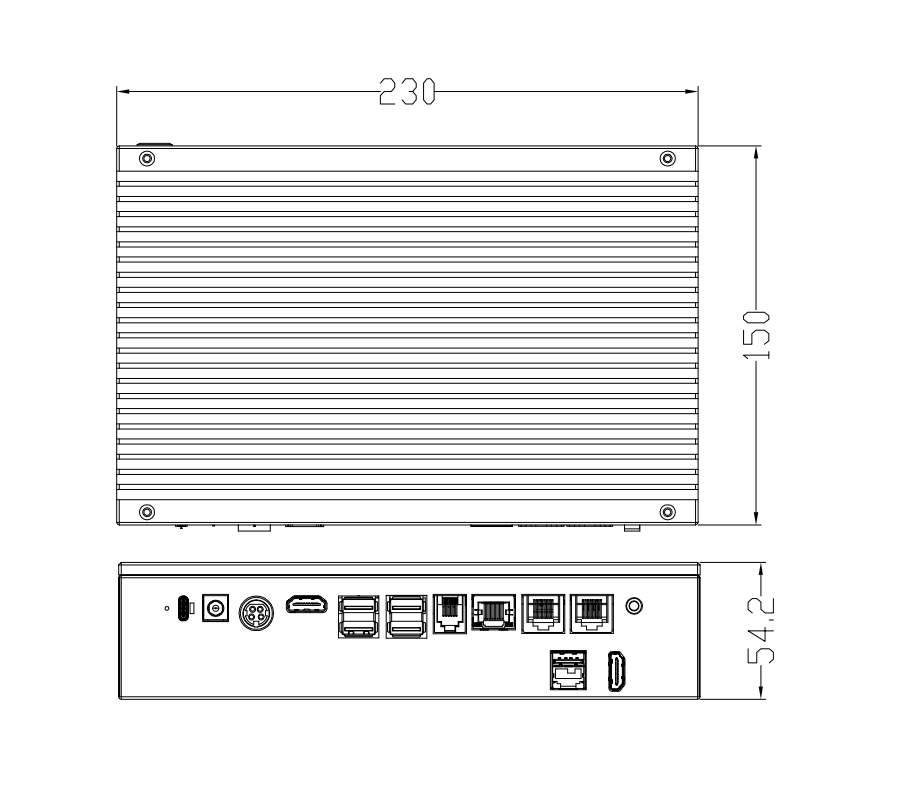

Compact Footprint

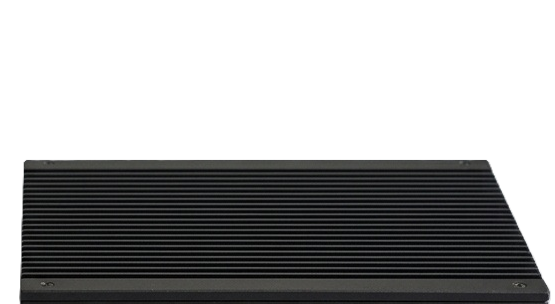

Fanless Architecture

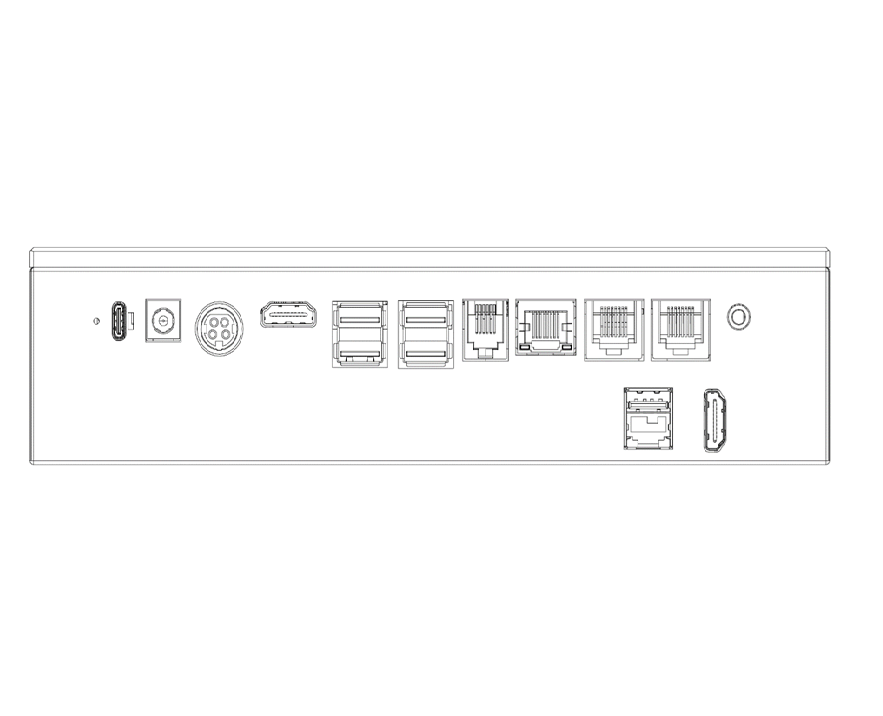

Variety of Interfaces

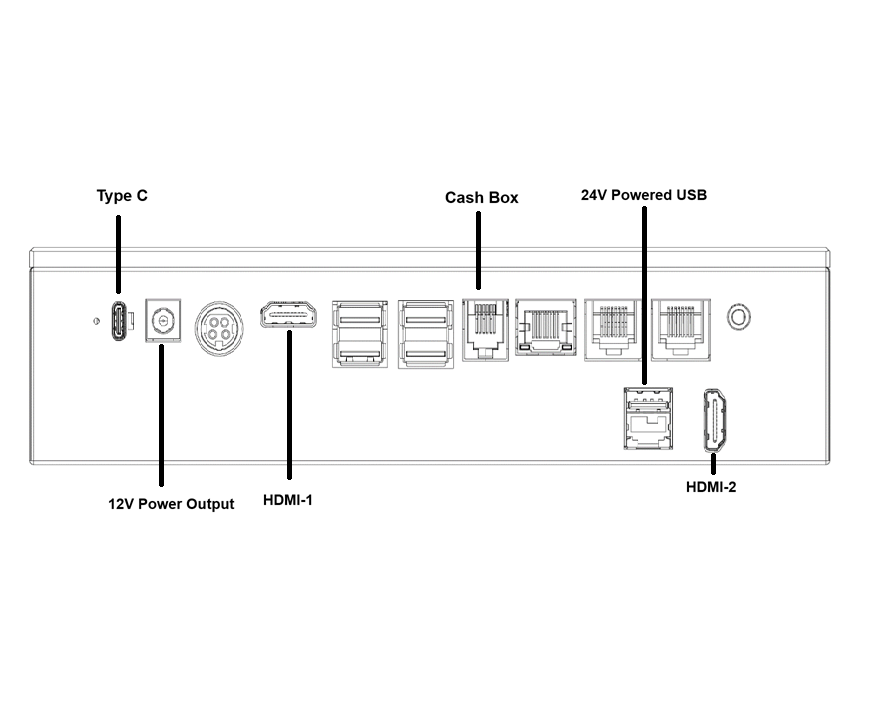

24V Powered USB

Type C

Dual HDMI

12V Power Out

Specifications

Material





Aluminium & Metal

Configuration

CPU Support



N97, N100, N150, I3-1215, I5-1235- 12th Gen CPU (Opt - 13th Gen)



System Type



Fan-less



Ram



8Gb DDR4 2400/2666/3200Mhz

(32Gb Max)



SSD



256Gb M.2 NVMe ( Max 512Gb)

Interfaces

USB Port

USB 3.0

2



USB Port

USB 2.0

2



USB Port

24V

1



USB

Type C

1 (5V, 3A)



Cash Drawer

RJ11

1



LAN

Giga LAN

1



RS232

RJ45

2



HDMI

Main Display

1



HDMI

Second Display

1



Audio

Music

1



DC-IN

Power – 4Pin

1



DC-Out

Power – Round Pin

1(12V, 2A)

Environment

Temperature



0°C~40°C, 10%~90% RH, non-condensing

Power supply

DC-IN

4Pin

24v-4.16amp

Size

WDH



230*150*54.2mm

Packaging





1pc/box, 10pcs/ctn
