K1008

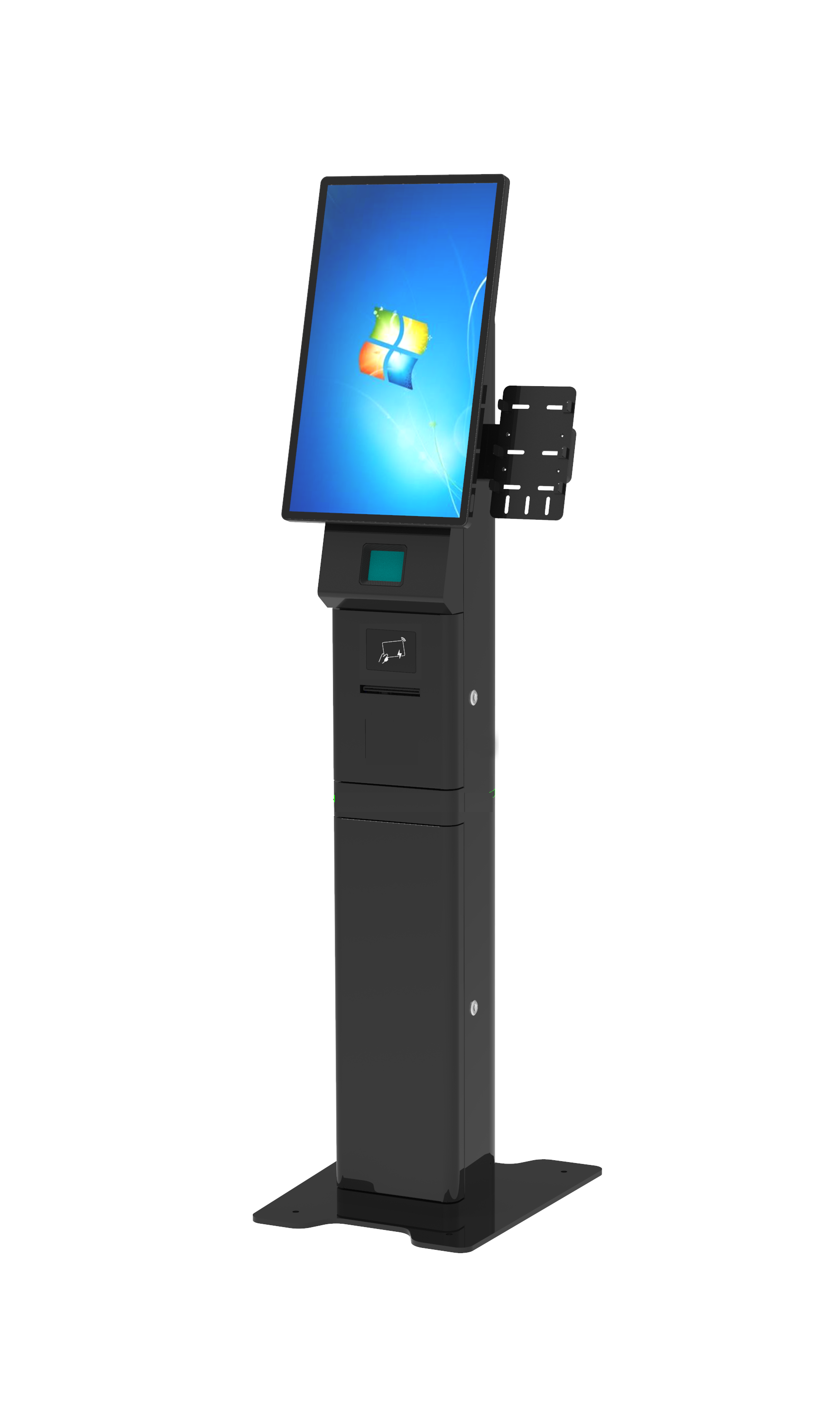

Self Service Kiosk
.png)
| 21.5" FHD Display , PCAP, J6412, 8Gb Ram, 128Gb SSD, Wi-Fi, |
| Floor Stand Includes Kiosk Printer, 2D/1D Barcode Scanner with IR Sensor, RD09 NFC Card Reader |
| Extension Box , Surge Protection Unit , ESD Protection |
| 21.5" FHD Display , PCAP, RK3566, 4Gb Ram, 64Gb EMMC, Android 11, Wi-Fi, Bluetooth, |
| Floor Stand Includes Kiosk Printer, 2D/1D Barcode Scanner with IR Sensor, RD09 NFC Card Reader |
| Extension Box , Surge Protection Unit , ESD Protection |
Ultra Slim Touchscreen Panel

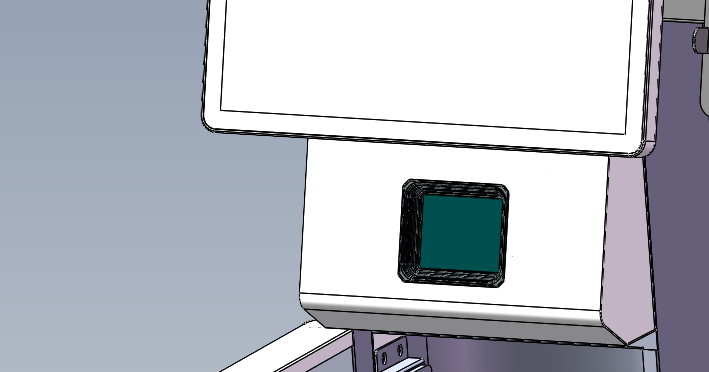

2D/1D Barcode Scanner with IR Sensor

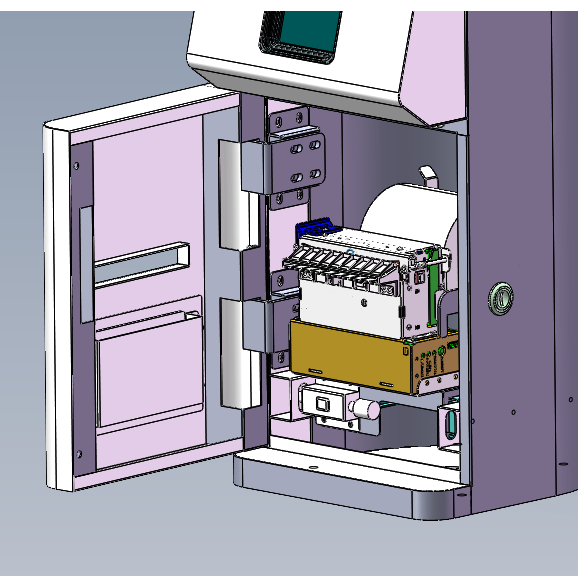

Built-in 80mm Kiosk Printer

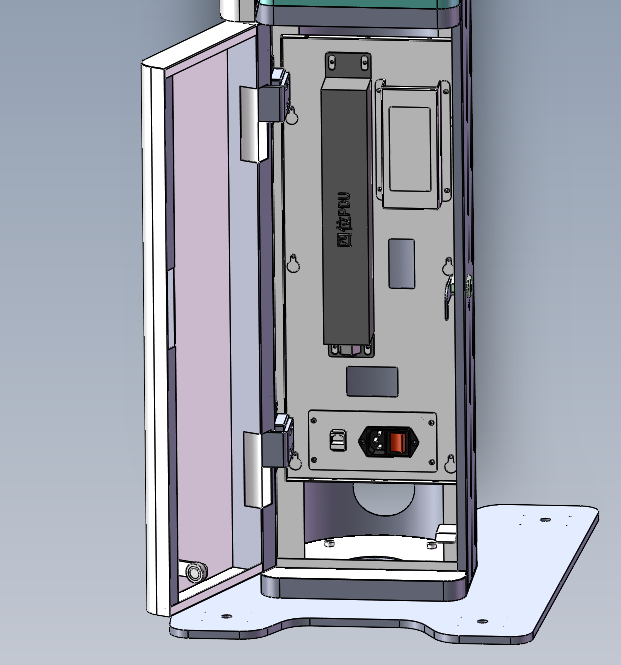

Surge & ESD Protection Unit
| Processor |
Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz |
RK3566, Quad-core Cortex-A55, Mali-G52 EE – 2.0Ghz |
| Memory | 8Gb DDR4 - 2400Mhz | 4Gb DDR4 |
| Storage | 128Gb M2 SSD (Optional 256Gb) | 64Gb Emmc (Optional 64Gb) |
| Operation System | Windows 10 IoT Enterprise, Linux | Android 11, Linux Ubuntu |
| Screen Size | 21.5" LCD TFT (LED Backlit), 350nits, IP64 Front | |
| Resolution | 1080 x 1920 | |
| Screen Position | Vertical or Horizontal | |
| Touch Panel | PCAP, Multi-touch | |
| Speaker | 2W speaker | |
| WiFi | 2.4GHz | |
| Bluetooth | Optional | BT 4.2 |
| Adaptor | 12V, 5A - 60W | |
| Interfaces | ||
| USB | 4 | |
| COM | 2 | 1 |
| Ethernet | 1 | |
| RJ11 | 1 | |
| Audio | 1 | |
| HDMI | 1 | |
| Environment | ||
| Operation Temperature | 5~40°C | |
| Storage Temperature | -20°C to +60°C | |
| Operation Humidity | 15 to 85% without condensation | |
| Storage Humidity | 15 to 85% without condensation | |
| Peripherals | ||
| Bar Code Scanner | 2D/1D, 640*480, DOF: 0~80mm, IR Sensor | |
| Printer | 3" Direct Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB), 24V-2.5A Power Input | |

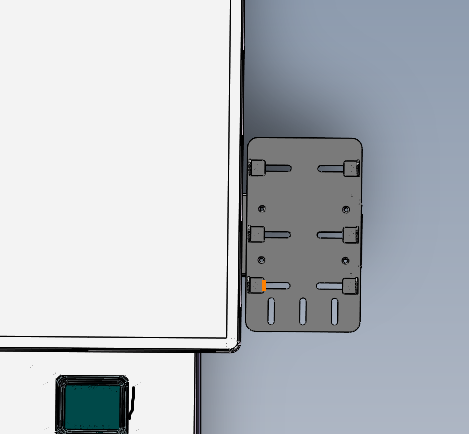

| EMV Terminal Bracket | Any Payment terminal with 70-100mm width | |
| Camera | As per customer requirement | |
| RFID Reader | RD07(R&W) adopt 13.56MHz non-contact frequency up to 5cm distance , supports cards such as ISO/IEC 14443A/MIFARE Reader/Writer, FeliCa Reader/Writer, ISO/IEC 14443B Reader/Writer, ISO/IEC 15693 Reader, mobile phone NFC , USB HID-USB Interface | |
| Dimensions & Weight | Standalone Configuration | |
| Height | 151cm | |
| Width | 20cm | |
| Width with Base Plate | 39.8cm | |
| Depth | 22cm | |
| Depth with Base Plate | 45cm | |
| No of units / Box | 1pc/box | |
| Box Dimensions | 156.5*32.5*45.5cm (Kiosk), 57*66*7.5cm ( Bottom Plate) | |
| Box Weight | 37kg (Screen+Stand), 17.5kg(Bottom Plate) | |
